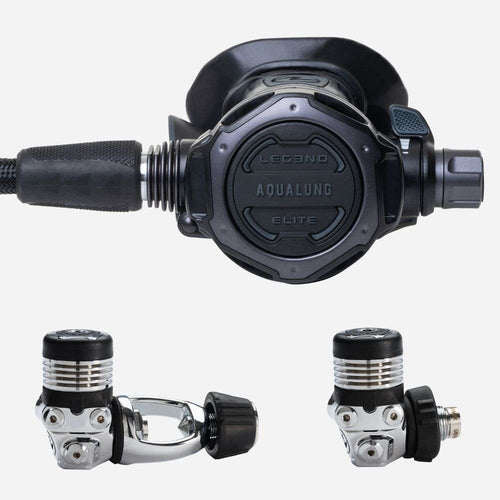

LEG3ND ELITE BLACK EDITION - Dive Regulator
$1,199.00

LEG3ND ELITE BLACK EDITION - Dive Regulator

$1,199.00
The Leg3nd Elite Black Edition is the perfect combination of high function and stunning design. An aesthetic masterpiece made with stainless-steel parts, intuitive ergonomics are at yourfingertips. Diving experts will appreciate the technical precision of this high-performance regulator.First stage
  • When the first stage is not connected to a cylinder valve, the Auto Closure Device (ACD) keeps the inlet shut to protect the first stage internal parts from contamination and corrosive water.
  • Preserves the internal lubrication
  • Keeps the inlet filter clean and dry
  • Exceptional cold-water performance is achieved by modernizing Aqualung's three anti-freeze properties:Where there's no moisture, there's no ice: The LEG3ND's integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment
  • Deep ribs create a large heat exchange surface area that helps to prevent ice forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)
  • The new overmolded cap delays ice forming over the external diaphragm
  • Auto-Balanced (also known as Over-Balanced)
  • Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver's depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density
  • Ergonomically shaped DIN and YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands
  • Channeled YOKE screw to prevent water retention.
  • Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damagePerfectly positioned HP and MP ports provide optimal hose routing
Second Stage
  • New front cover opening channels allow water to flow sideways over the diaphragm
  • Radial openings to prevent freeflows when diving in stronger currents
  • Openings widened to reduce peak inspiratory flow by an impressive 20%
  • New overmolded exhaust cover made of elastomer with a “soft touch” effect
  • Overmolded air purge
  • Wide surface area makes regulator purging easier
  • Purge depth controller optimizes air flow with minimal effort
  • Patented Comfobite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.
  • Detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.
  • The enlarged heat exchanger helps to prevent freezing of the second stage mechanism
  • Air channel deflector
  • Directs the air flow evenly during the inhalation phase
  • Streamlined bi-material deflector lowers the exhalation effort
  • Flexible and lightweight Aqua Flex hose with dual protectors
See full details
Colors : Black
Connection type :
Find a Store
Item n°: RG148011
Image to render Quality products
Product Details - LEG3ND ELITE BLACK EDITION - Dive Regulator

Product Details

The Leg3nd Elite Black Edition is the perfect combination of high function and stunning design. An aesthetic masterpiece made with stainless-steel parts, intuitive ergonomics are at yourfingertips. Diving experts will appreciate the technical precision of this high-performance regulator. See product features

Features

First stage
  • When the first stage is not connected to a cylinder valve, the Auto Closure Device (ACD) keeps the inlet shut to protect the first stage internal parts from contamination and corrosive water.
  • Preserves the internal lubrication
  • Keeps the inlet filter clean and dry
  • Exceptional cold-water performance is achieved by modernizing Aqualung's three anti-freeze properties:Where there's no moisture, there's no ice: The LEG3ND's integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment
  • Deep ribs create a large heat exchange surface area that helps to prevent ice forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)
  • The new overmolded cap delays ice forming over the external diaphragm
  • Auto-Balanced (also known as Over-Balanced)
  • Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver's depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density
  • Ergonomically shaped DIN and YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands
  • Channeled YOKE screw to prevent water retention.
  • Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damagePerfectly positioned HP and MP ports provide optimal hose routing
Second Stage
  • New front cover opening channels allow water to flow sideways over the diaphragm
  • Radial openings to prevent freeflows when diving in stronger currents
  • Openings widened to reduce peak inspiratory flow by an impressive 20%
  • New overmolded exhaust cover made of elastomer with a “soft touch” effect
  • Overmolded air purge
  • Wide surface area makes regulator purging easier
  • Purge depth controller optimizes air flow with minimal effort
  • Patented Comfobite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.
  • Detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.
  • The enlarged heat exchanger helps to prevent freezing of the second stage mechanism
  • Air channel deflector
  • Directs the air flow evenly during the inhalation phase
  • Streamlined bi-material deflector lowers the exhalation effort
  • Flexible and lightweight Aqua Flex hose with dual protectors

Specs

First Stage

  • Type of first stage     Overbalanced diaphragm design
  • Auto-Closure Device (ACD)     Yes
  • Number of HP ports     2
  • Number of MP ports     4
  • 1st Stage Flow Rate     1500 l/min
  • 1st Stage Weight in DIN            747 g
  • 1st Stage Weight in Yoke     957 g
  • Environmental Dry Kit     Permanent
  • First stage exterior     Chrome over marine brass


Second Stage

  • Type of second stage                                   Pneumatically balanced
  • Controls                                                       Venturi switch
  • Breathing resistance                                   Adjsutable
  • Mouthpieces                                             2ea. – A Comfo-Bite, installed, and a standard with bite wings in the box
  • Lip shield                                             Included
  • Heat Exchanger for freezing resistance        Standard on all models
  • 2nd Stage Weight                                             227 g
  • Hose length                                             730 mm
  • Overall work of breathing (WOB) scores     Avg. 0.70 joules/liter
  • Nitrox compatible                                                     Yes, to 40% O2 when new, out of the box
What’s in the box - LEG3ND ELITE BLACK EDITION - Dive Regulator

What’s in the box

  • LEG3ND Regulator
  • User's Guide
