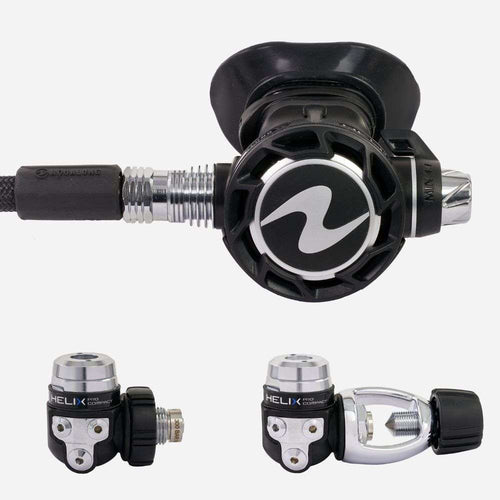

HELIX COMPACT PRO - Dive Regulator
$699.00
HELIX COMPACT PRO - Dive Regulator
$699.00
You don’t need to be big to make a big impact. That thinking inspired the Helix Compact Pro the smallest and most compact regulator Aqualung has ever produced. This amazing piece of technology is equally designed for warm and cold water, meaning it’s perfect for jetsetters on the go, minimalists packing light, and even local divers who simply want unequalled performance per ounce.
Designed and made in France.
See full details
Item n°:
RG154003
Product Details
You don’t need to be big to make a big impact. That thinking inspired the Helix Compact Pro the smallest and most compact regulator Aqualung has ever produced. This amazing piece of technology is equally designed for warm and cold water, meaning it’s perfect for jetsetters on the go, minimalists packing light, and even local divers who simply want unequalled performance per ounce. Designed and made in France. See product features See declaration of conformity: EU_DECLARAT...Features
First stage
- TRAVEL-READYThe reduced size and weight makes the Helix Compact Pro the ideal choice for travelers.
- COMPACT DESIGNIdeal for smaller faces, such as those of women and younger divers, ensuring it doesn't obstruct their field of vision underwater. Lightweight, it also reduces fatigue when held in the mouth during long dives.
- AUTO CLOSURE DEVICEThe ACD keeps the inlet shut to protect internal parts from debris and corrosive water when not connected to a cylinder valve. It helps to maintain oxygen compatibility, preserve internal lubrication, and keep the inlet filter clean and dry. This extends the life of the first stage between services.
- PERMANENT DRY CHAMBERWhere there's no moisture, there's no ice. The Permanent Dry Chamber keeps internal parts clean and dry by isolating them from the outside environment. This enhances overall freeze resistance of the regulator when diving in cold water.
- OVER-BALANCED MECHANISMAlso known as Auto-Balanced, the Over-Balanced Mechanism overcompensates the interstage pressure to reduce your breathing effort. Regardless of depth or tank pressure, it provides effortless breathing from the beginning to the end of your dive. This results in superior performance at depth.
- BALANCED DIAPHRAGMProvides superior and consistent performance.
- BLUE HIGH PRESSURE SEATIt is the core of the first stage. The Blue High Pressure Seat opens and closes with every breath, forming a perfect seal with durable materials that work in all conditions and with all gasses. The working pressure of the first stage is automatically elevated to counteract the increased breathing air density.
- DUST CAP PROTECTIONAttached to the regulator body, the Dust Cap protects the inlet fitting and the Auto Closure Device from impacts and damage. It also seals the first stage when it's off the tank.
- HP/MP PORTSHP and MP ports and "T" Shape o 2 HP ports (7/16”) and 4 MP ports (3/8”) perfectly oriented in a “T” shape for streamlined hose positioning.
- AVAILABILITYDIN (4,350psi/300 bar max.) and YOKE (3,300psi/232 bar max.).
- COVER OPENING CHANNELSThe Front Cover Opening Channels allow water to flow sideways over the diaphragm. The wide radial openings prevent freeflows when diving in strong currents and reduces cracking effort by 20%.
- VENTURI ADJUSTMENT SWITCHThe Venturi Adjustment Switch allows divers to precisely control and adjust the air flow. In the “MIN” position, the valve's assistance is minimized, resulting in a higher inhalation effort, ideal to avoid freeflow. In the “MAX” position, the valve's assistance is maximized, resulting in a lower inhalation effort. The overmolded elastomer and ergonomically designed lever allow control of the air flow even while wearing gloves.
- CRACKING EFFORT ADJUSTMENTCracking effort adjustment system allows the diver to fine tune the breathing performace of the regulator depending on the different diving conditions.
- PNEUMATICALLY BALANCEDFor smooth and easy breathing at all depths.
- HEAT EXCHANGERPrevent ice forming on the valve inlet.
- COMFOBITEA patented and comfortable mouthpiece featuring a unique palate bridge reduces jaw fatigue and securely holds the second stage in place. Made from hypoallergenic silicone, the orthodontic mouthpiece is both soft and sturdy.
- INTERCHANGEABLE MOUTH PIECEThe detachable and reusable mouthpiece clamp allows for quick and simple tool-free change, avoiding plastic waste.
- REUSABLE MOUTHPIECE CLIPPerform quick and easy mouthpiece changes using the removable, reusable clip.
- BRAIDED HOSEProvides flexibility, comfort and excellent transportability.
Specs
First Stage
- Type: Diaphragm
- Technology : Balanced
- Max Working Pressure:
- 300 b on DIN,
- 232b on yoke
- ACD System : YES
- Environtmental Chamber : YES
- HP Port : 2
- MP Port : 4
- 1st Stage Weight in DIN : 740 g
- 1st Stage Weight in Yoke : 525 g
- Type: Balanced
- Technology : Downstream Valve
- Venturi Vane : YES
- Adjustment Knob : YES
- Comfobite mouthpiece : YES
- Heat Exchangers: YES
- Lip Shield : YES
- Weight : 200 g
- Work Of Breathing : 1,35 j/L (50 m depth, 50 bars and a 62,5 l/min breathing rate)
- Type: Balanced
- Technology : Downstream Valve
- Venturi Vane : YES
- Adjustment Knob : NO
- Comfobite mouthpiece : NO
- Heat Exchangers: YES
- Lip Shield : NO
- Weight : 150 g
- Work Of Breathing : 0,70 j/L (50 m depth, 50 bars and a 62,5 l/min breathing rate)
What’s in the box
- Helix Compact Pro Regulator
- User Manual
